Water-treatment equipment

Water-treatment equipment is purposed for water treatment before its input to the steam boiler or its recharge in the water heating boilers.

Block water-treatment equipment is used for water softening in boilers and other objects, which require softened water. Water-treatment equipment is purposed for such objects where in the capacity of source water supply system is used. Water-treatment equipment consists of an ion-exchange counterflow filter, a salt solution preparation tank, an electric motor hydraulic pump package. They are fabricated on the same frame and connected with pipelines and a carcass.

Water-treatment equipment is completed with all necessary components: a pump, isolation valves, and supervisory instruments. It is supplied in the maximum assembly readiness.

All equipments have a cationite regeneration machinery.

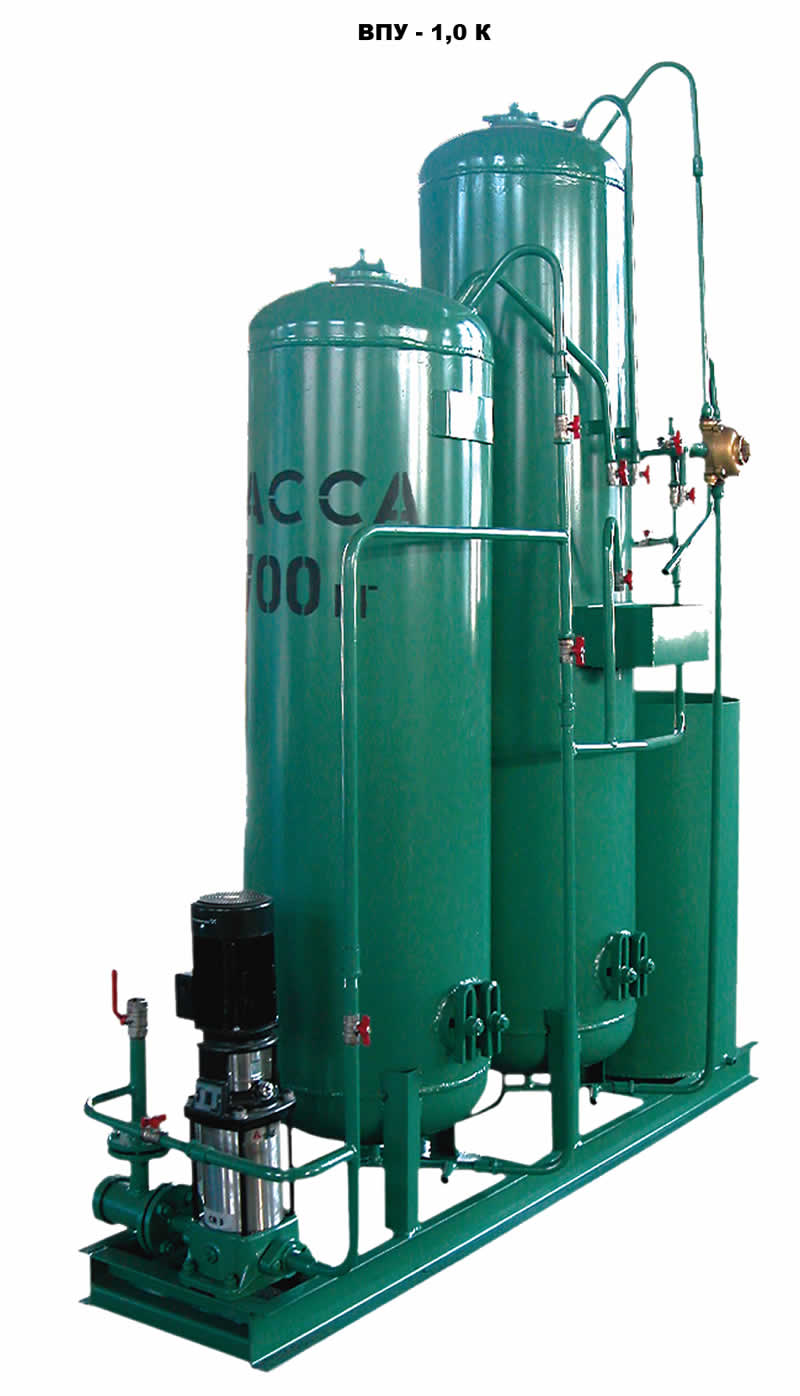

Water-treatment equipment ВПУ-1,0-К is purposed for water clarification and softening, which is taken from open water bodies, artesian wells and water supply systems. It consists of 2 filters (clarifying with granular filter and cationite one) and a salt solvent tank for the cationite regeneration.

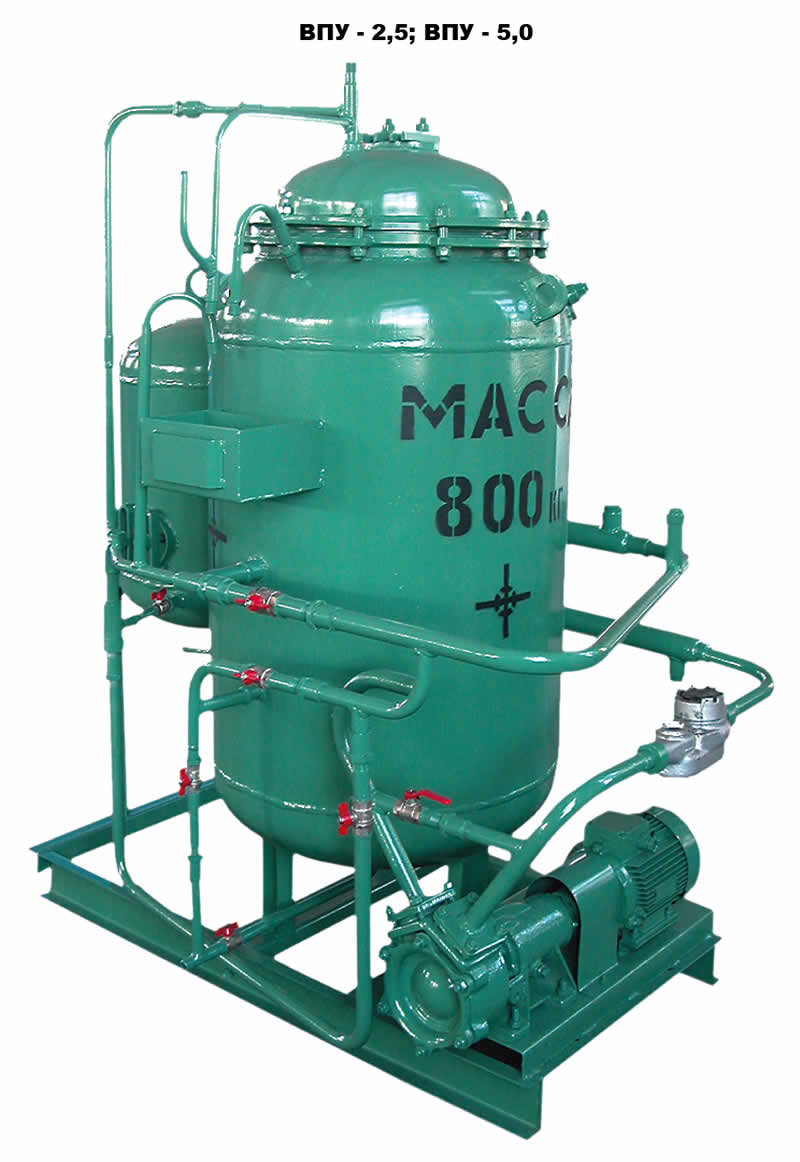

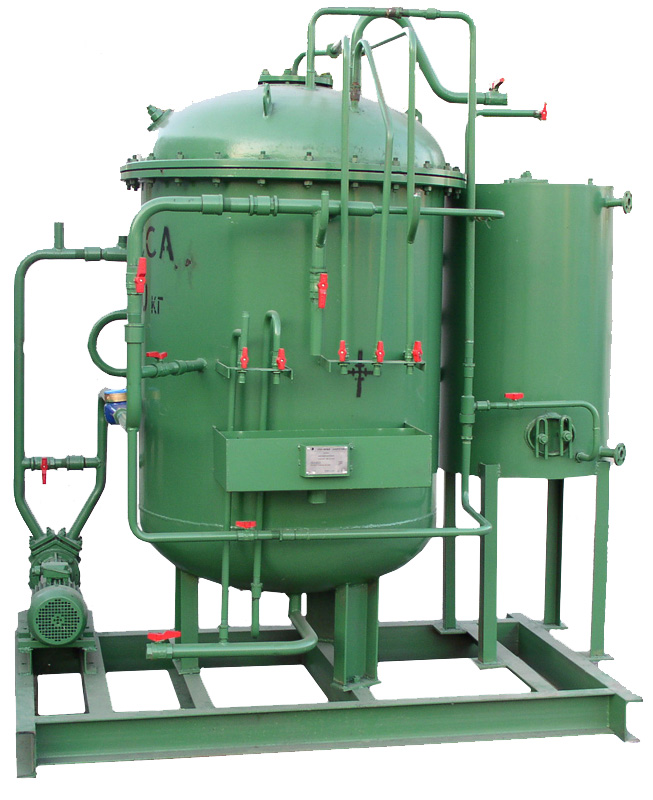

Water-treatment equipment ВПУ-2,5 and ВПУ-5,0 are machineries with a two-pass cationite counterflow filter. This filter and a salt solvent tank are fabricated on the same frame. Besides, ВПУ-2.5 and ВПУ-5.0 have a steam heat exchanger for heating of source water till the 450°С temperature. They are purposed for water softening, taken from artesian wells and water supply systems.

Guarantee quality conditions of all boilers assortment are supported with certificates of conformance and licencing documents of supervised instances and have sanitary –epidemiological inferences of Ukraine, Belarus and the Russian Federation.

ВПУ-1,0
ВПУ -2,5
ВПУ - 5,0
